Titanium alloys are renowned for their exceptional strength, lightweight, and outstanding corrosion resistance, making them a favored material in many demanding engineering applications. These alloys are not just tough; they’re also highly versatile, adapting to various manufacturing processes from aerospace engineering to medical device fabrication.

This article explores the different grades of titanium alloys, shedding light on their unique compositions, properties, and the specific industries they benefit. We’ll also go into the manufacturing methods that shape these alloys into vital components used worldwide. Continue reading to understand why titanium is so integral to the modern manufacturing process.

Table of Contents

What is Titanium?

Titanium is a lightweight, high-strength metal distinguished by its outstanding corrosion resistance and superb strength-to-weight ratio. Renowned for its durability and silver color, titanium’s chemical element symbol is Ti, and it ranks as the ninth most abundant element in the Earth’s crust.

This titanium metal forms advantageous alloys with elements such as aluminum, vanadium, and molybdenum, enhancing its already impressive properties. These characteristics make titanium ideal for demanding engineering applications where weight, strength, and resistance to harsh conditions are critical, such as in aerospace, military, automotive, and medical implants.

Grades of Titanium Alloys

Titanium alloys are categorized based on their mechanical properties and chemical compositions, each tailored for specific applications.

Here’s a detailed comparison table for the titanium alloy grades based on their composition, properties, and common applications:

Grades	Alloy Type	Composition	Properties	Common Applications
Grade 1	Pure Titanium	99% Titanium: Primarily titanium with very low levels of oxygen and other impurities	Most ductile, excellent corrosion resistance, high impact toughness	Architecture, marine environments, chemical processing
Grade 2	Pure Titanium	99% Titanium: Similar to Grade 1 but with slightly higher oxygen content	Good strength, optimal flexibility, excellent weldability	Aerospace, automotive parts, power generation
Grade 5	Ti-6Al-4V	Titanium, 6% aluminum, 4% vanadium	High strength, good heat resistance, strong fatigue strength	Aerospace structures, surgical implants, high-performance automotive
Grade 7	Pure Titanium	Similar to Grade 2 with palladium	Enhanced corrosion resistance, excellent weldability and fabricability	Chemical processing, corrosive environments
Grade 9	Ti-3Al-2.5V	Titanium, 3% aluminum, 2.5% vanadium	Higher strength than pure grades, excellent corrosion resistance, high weldability	Aerospace hydraulic lines, bicycle frames, marine equipment
Grade 12	Titanium Alloy	Titanium, 0.3% molybdenum, 0.8% nickel	Strong, heat resistant, good weldability, enhanced corrosion resistance	Chemical processing involving hot acids
Grade 23	Ti-6Al-4V ELI	Low interstitial version of Grade 5	High fracture toughness and ductility, similar strength and corrosion resistance as Grade 5	Medical implants, dental instrumentation, aerospace skins

Applications of Titanium Alloys

Titanium alloys are celebrated for their strength, lightweight, and corrosion resistance, making them ideal for variou applications across multiple industries. Some include:

Medical Equipment

Titanium alloys are extensively used in medical applications due to their biocompatibility, strength, and corrosion resistance. They are ideal for implants such as hip and knee replacements, dental implants, and surgical instruments. The non-toxic nature of titanium prevents rejection and supports bone osseointegration, enhancing the longevity of medical implants.

Eyeglass Frames

Titanium is prized in the eyewear industry for its lightweight, strength, and hypoallergenic properties, making it perfect for eyeglass frames. It allows for the production of durable, comfortable, and fashionable frames that resist corrosion from skin oils and perspiration. This versatility makes titanium frames a popular choice for both everyday wear and high-end designer glasses.

Sporting Goods

In sporting goods, titanium alloys are used to manufacture golf clubs, bicycle frames, and racquets due to their lightweight and high strength-to-weight ratio. These properties help enhance performance by reducing the equipment weight while maintaining durability and resistance to wear and tear, making titanium a preferred material among athletes and casual players alike.

Cookware

Titanium alloys are also used in cookware, where their excellent heat transfer, lightweight, and corrosion-resistant characteristics come into play. They provide a non-toxic cooking surface that does not alter the taste of food. Titanium cookware is known for its durability and ability to withstand high temperatures. It is a favorite among culinary professionals and home cooks seeking quality and longevity in their cooking tools.

Jewelry

Titanium is increasingly popular in the jewelry industry due to its hypoallergenic properties, lightweight, and impressive durability. It’s especially favored for wedding bands and body piercings, where its resistance to corrosion and tarnish from daily wear is crucial. The distinctive silver-gray color of titanium offers a stylish, modern aesthetic, and it can be anodized to produce various colors, enhancing its appeal in fashion-forward jewelry designs.

Watches

Titanium alloys are highly valued in watchmaking for their corrosion resistance, strength, and lighter weight compared to stainless steel. These properties make titanium watches comfortable to wear and enduringly stylish while being strong enough to resist the rigors of both everyday use and extreme conditions. Their non-reactive surface is gentle on sensitive skin, which contributes further to their popularity in high-end and sports watches.

Automobile Parts

In the automobile industry, titanium alloys are used for their high strength-to-weight ratio and corrosion resistance. They are commonly found in performance-critical components such as valve springs, exhaust systems, and suspension springs. Titanium parts help reduce the overall weight of the vehicle, which can lead to improved fuel efficiency, faster acceleration, and enhanced handling, making them essential in racing and luxury cars.

Marine Engineering

Titanium’s exceptional resistance to corrosion by saltwater makes it an excellent choice for marine engineering applications, including ship propellers, hulls, and rigging equipment. It is also used in desalination plants and underwater piping systems. Titanium withstands long-term exposure to marine environments without suffering degradation, thereby extending the lifespan of marine structures and reducing maintenance costs significantly.

Manufacturing Methods for Titanium Alloys

There are several advanced techniques used to shape and form titanium alloys into high-performance components suited for various demanding applications, including:

CNC Machining

CNC (Computer Numerical Control) Machining is a prevalent method for shaping titanium alloys due to its precision and versatility. This process involves using computer-controlled machines and tools to remove layers from a titanium block to create intricate and detailed parts. CNC machining is particularly suitable for titanium due to its ability to handle the material’s toughness and work-hardening characteristics efficiently. The process ensures high dimensional accuracy and excellent surface finish, which are critical for components used in the aerospace, medical, and automotive industries. The adaptability of CNC machining allows for the production of both small and large-scale parts with complex geometries and tight tolerances.

Sheet Metal Fabrication

Sheet metal fabrication of titanium involves various processes such as cutting, bending, and assembling to create final products or parts. Due to titanium’s high strength and low weight, it requires specialized fabrication techniques to ensure accuracy without damaging the material. Processes like water jet cutting, laser cutting, and plasma cutting are commonly used to handle titanium sheets without adding heat stress or altering the material’s properties. Once cut, the titanium sheets can be bent or formed using press brakes and other equipment designed to work with this resilient material. This sheet metal fabrication method is widely used for producing structural aerospace parts, architectural elements, and marine applications, where the integrity and performance of titanium are crucial.

Metal Casting

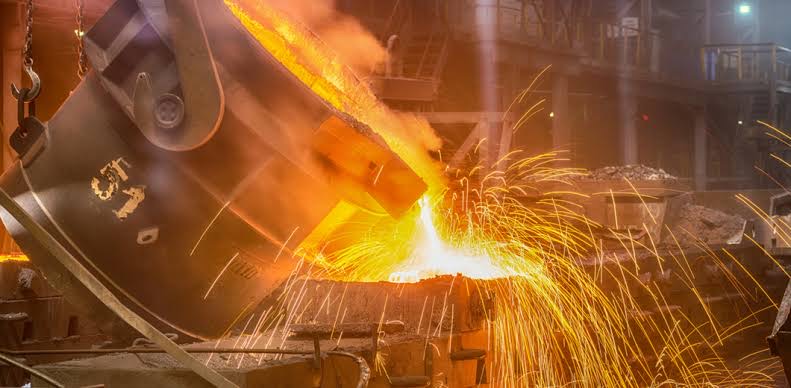

Metal Casting Process

Metal casting is a traditional manufacturing process adapted to titanium alloys, particularly useful for creating complex shapes and large parts that are challenging to machine. The process involves melting titanium in a vacuum or inert atmosphere to protect it from oxidation and then pouring it into a mold where it solidifies. The casting of titanium requires specialized facilities due to its high melting point and reactivity with materials at elevated temperatures. Despite these challenges, metal casting is effective for producing durable components with intricate geometries, commonly used in aerospace engine components, industrial machinery, and maritime hardware. This method allows for a high degree of customization while maintaining the inherent properties of titanium.

3D Printing

3D printing, or additive manufacturing, is a revolutionary technique increasingly used for titanium alloys, offering the ability to produce complex, lightweight, and strong structures with minimal waste. Titanium powder is selectively laser-sintered in a layered fashion to build parts from the ground up. This process is highly valued in fields such as aerospace and medical prosthetics, where customized geometry and internal structures can significantly enhance performance and integration. 3D printing with titanium allows for the creation of components that would be impossible or prohibitively expensive with traditional manufacturing methods, such as intricate lattice structures for bone implants or optimized aerospace components with reduced weight and increased strength.

Conclusion

The versatility and strength of titanium alloys have made them valuable in industries where durability and weight are crucial. From the operating room to outer space, titanium’s reliability shines through in its many applications. Advances in manufacturing technologies such as CNC machining, metal casting, and 3D printing have opened up even more possibilities, allowing for the creation of complex shapes and intricate designs that were once deemed unfeasible. Brands such as Zintilon and Rapid Direct are at the forefront of advanced manufacturing techniques that transform titanium alloys into high-performance manufacturing materials.
